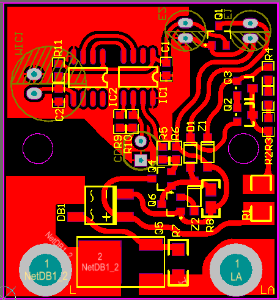

Product picture

Load power

incandescent light bulb 200W、energy saving lamp、LED light 100W

Quiescent current

Around 30uA（The smaller the value, the less blinking the low-power LED will be.）

PCB size

36mm*39mm single face

Trigger mode

          Repeatable trigger

  Delay time

        40±5s（customizable ）

Blocking time

2s

Optical illumination

Photosensitive resistor/photosensitive diode optional.

The default illumination is 3Lux, which can be customized according to customer requirements.

Acoustic sensitivity

         around 65dB

Product feature

Environmental protection.

Illuminance can be changed resistance adjustment, to meet the use of different places.

Can be triggered repeatedly, the lamp life is long.

Current device 4-8A, can control the load is large.

With 2A fuse, even short circuit, replace the fuse.

Single live line EMC problem can be solved.

Centralized control and fake fire fighting products can be mixed with fire fighting products.

Good stability, strong anti-interference.
