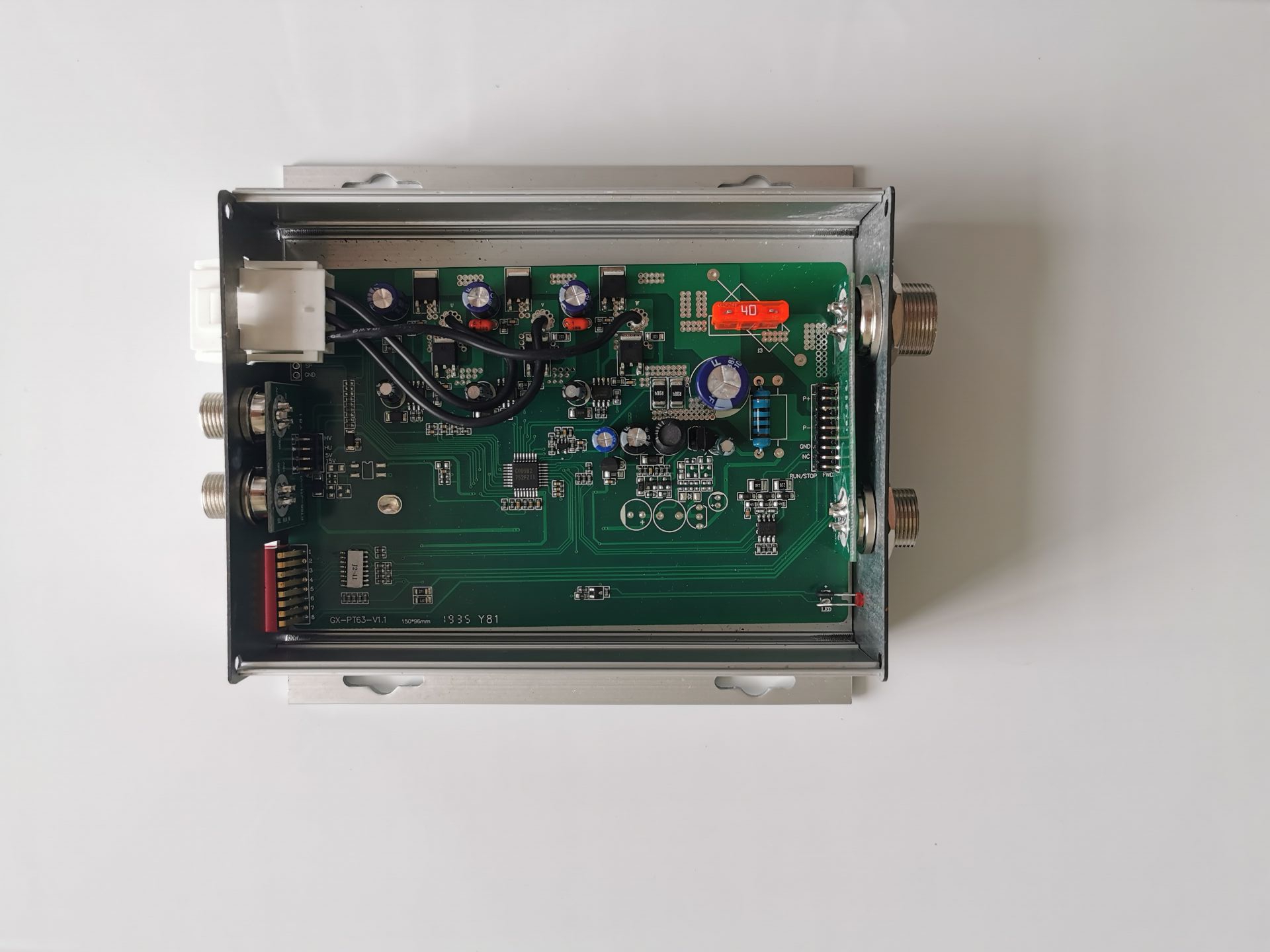

Sorter brushless controller


One. Basic parameters:

1. nominal voltage:24-120V ;

2. maximum limited current:20-40A ;

3. soft boot:≤2S;

4. the braking time:≤3S;

6. operating ambient temperature:-20-60℃;

7. constant-speed control;

8. self-consuming:<30uA;


Two. Defective function

1. over discharge protection

2. over current protection

3. current-limiting protection

4. temperature protection

5. blocing/low speed protection(≤100rpm)

6. phase line short circuit protrction

7. open-phase protection

8. short-circuit protection


Three. Others

1. The product confirms to the requirement of

EC62841-1;

2. The product confirms to the requirement of

IEC60335-1 Annex R;

The product confirms to the requirements of

ROHS,REACH,EMC and so on;

4.Waterproofing grade of  the product is IP56.
